Board Specifications

Types of processed products

Applicable to vacuum hole filling operations for resin, copper paste, and silver paste on rigid/flexible PCB boards, including through-hole, blind via, back-drilled hole plugging, and high aspect ratio resin hole plugging.‌‌

Assignment style

Capable of operating through stencil under both vacuum and atmospheric pressure conditions

 Board Thickness

Max:3.0mm       Min:0.1mm

Board Size

Max:300*300 mm    Min:50*150mm

Plug hole blind hole maximum depth ratio

8:1No voids or dents

    Squeegee Function

Hole speed

0~600 mm/sec   adjustable

Plug hole printing pressure

1- 200KG   adjustable

Plug hole scraper angle

±15°

Available squeegee thickness

10mm/20mm/35mm

Scraper stroke

0~318mm     adjustable

Plug hole scraping drive

Servo motor with timing belt drive

Plug hole scraping method

Single Doctor-Blade Ink Coating Printing

Plug hole scraping guide

Double Rail‌ ‌

Plug hole alignment accuracy

≤0.01mm

    Mesh Base Specifications

Plug hole scraping direction

Front-facing control panel with reciprocating doctoring movement‌ ‌

Frame Size

Max:W650*D600mm

Min:W550*D500 mm（Grid Framework Height＞4MM）

Frame thickness

30~40 mm

Stencil fixation

Four-Point Pneumatic Clamping with Two-Point Mechanical Gripping

    CCD Specifications

Net Block Rise

0~350 mm

Quantity

2

Resolution

4.7um/pix

Effective field of vision

15*10mm

CCD indexing hole size

Max:W160*D260mm      Min:W40*D100mm

 CCD Alignment Mode

Positioning

UVW‌  Alignment Platform

Positioning accuracy

±0.005mm

Alignment time

≤1s

Alignment target requirements

1mm- 4mm

   External Device Specifications

Power supply

AC380V、3PH、Neutral & Ground Wire Provisions‌、Power 18Kw、Power Consumption 7 kWh/h

Cooling water

5-15℃，flow≥10L/min，Water Pressure 3- 4KG Connection to 1" PVC Rigid Pipe with Quick Coupling

Compressed air

7- 8 kg/cm²、flow≥10L/min，Connection to 1/2" Rigid Pipe with Quick Coupling‌ ‌

Vacuum pump group hot exhaust

Pipe Diameter 200mm，Exhaust Ventilation Volume6-10CMM

Temperature and humidity

22±2℃，50%±5，Cleanroom Class: Class 10,000 (Federal Standard 209E)‌ ‌

  Appearance & Weight‌ ‌

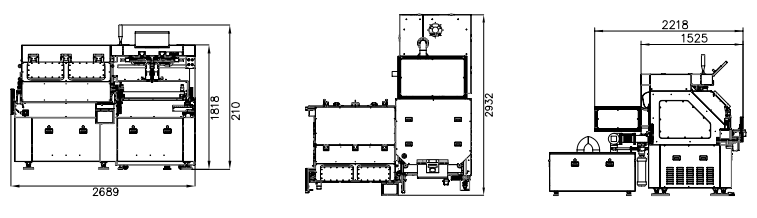

Equipment dimensions

L2689*W2932*H2109 mm

Device body weight

5006KG

Loading and unloading mechanism weight

370KG

Vacuum pump set weight

590KG

Total weight of equipment

5966KG

Notice:‌ Due to product model variations and ongoing technical modifications, ‌device dimensions and configurations may deviate from this specification document‌. This document serves ‌pre-contract reference only‌; final specifications shall be governed by ‌signed contractual agreements‌
